springmvcIntegratedJm

本章介绍springmvc如何集成积木报表

[TOC]

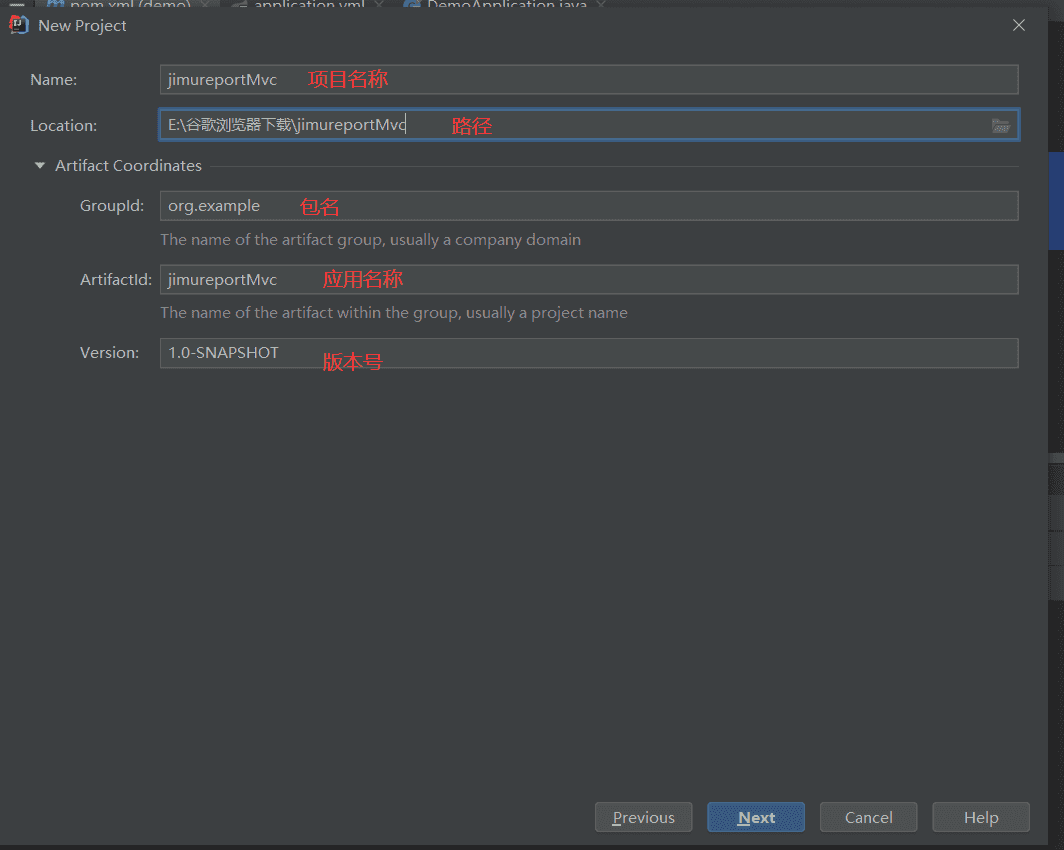

1、新建springmvc项目（使用idea）​

点击next

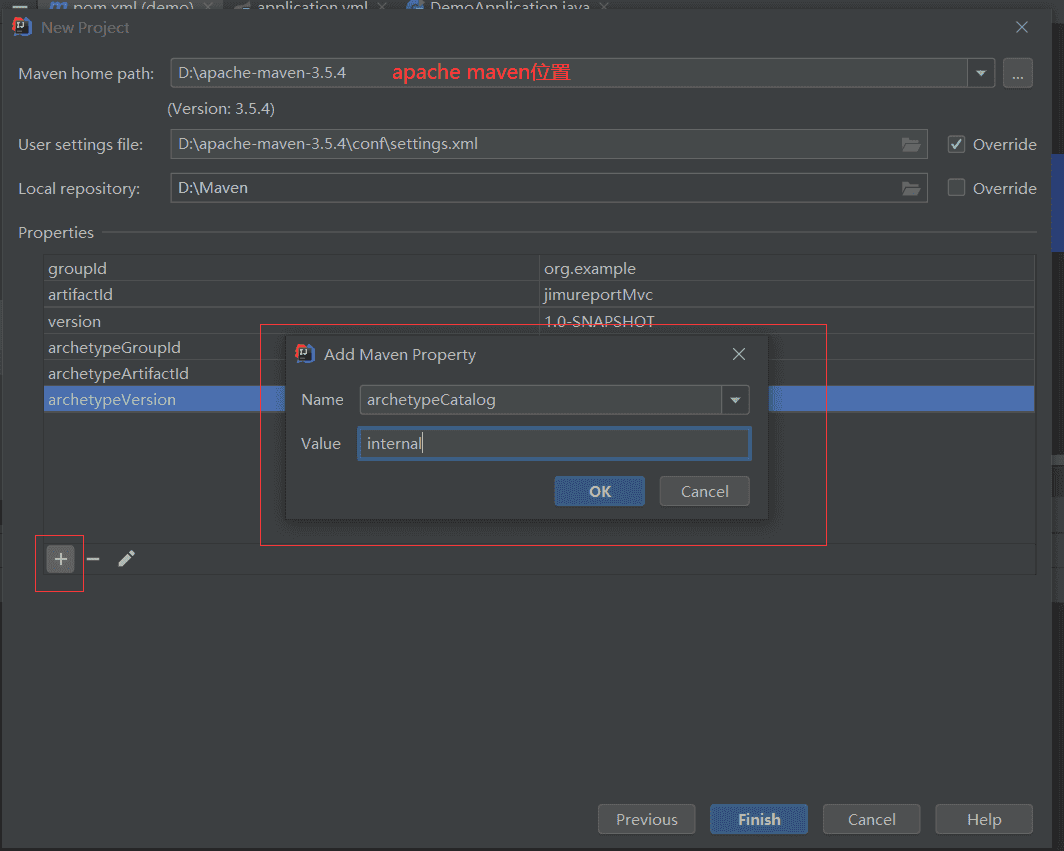

添加属性name：archetypeCatalog  value：internal，使用模板目录

点击finsh后的项目结构

2、执行初始化脚本积木报表sql​

jimureport.sql

3、pom文件中引入对应的依赖​

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
    <java.version>1.8</java.version>
    <!-- DB驱动 -->
    <postgresql.version>42.2.6</postgresql.version>
    <ojdbc6.version>11.2.0.3</ojdbc6.version>
    <sqljdbc4.version>4.0</sqljdbc4.version>
    <mysql-connector-java.version>8.0.20</mysql-connector-java.version>
    <minio.version>8.0.3</minio.version>
    <spring.version>5.2.10.RELEASE</spring.version>
    <freemarker.version>2.3.30</freemarker.version>
    <jimureport.version>1.4.0-beta</jimureport.version>
</properties>
<repositories>
    <repository>
        <id>aliyun</id>
        <name>aliyun Repository</name>
        <url>https://maven.aliyun.com/repository/public</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </repository>
    <repository>
        <id>jeecg</id>
        <name>jeecg Repository</name>
        <url>https://maven.jeecg.org/nexus/content/repositories/jeecg</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </repository>
</repositories>
<dependencies>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.11</version>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-web</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>javax.servlet-api</artifactId>
        <version>3.0.1</version>
        <scope>provided</scope>
    </dependency>
    <!-- JimuReport -->
    <dependency>
        <groupId>org.jeecgframework.jimureport</groupId>
        <artifactId>jimureport-spring-boot-starter</artifactId>
        <version>${jimureport.version}</version>
    </dependency>
    <!-- 数据库驱动 -->
    <!--mysql-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>${mysql-connector-java.version}</version>
    </dependency>
    <!--  sqlserver-->
    <dependency>
        <groupId>com.microsoft.sqlserver</groupId>
        <artifactId>sqljdbc4</artifactId>
        <version>${sqljdbc4.version}</version>
    </dependency>
    <!-- oracle驱动 -->
    <dependency>
        <groupId>com.oracle</groupId>
        <artifactId>ojdbc6</artifactId>
        <version>${ojdbc6.version}</version>
    </dependency>
    <!-- postgresql驱动 -->
    <dependency>
        <groupId>org.postgresql</groupId>
        <artifactId>postgresql</artifactId>
        <version>${postgresql.version}</version>
    </dependency>
    <!-- freemarker Begin -->
    <dependency>
        <groupId>org.freemarker</groupId>
        <artifactId>freemarker</artifactId>
        <version>${freemarker.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context-support</artifactId>
        <version>${spring.version}</version>
    </dependency>

    <dependency>
        <groupId>commons-fileupload</groupId>
        <artifactId>commons-fileupload</artifactId>
        <version>1.3.1</version>
    </dependency>
</dependencies>

4、新建resources文件夹和config文件夹，并新建文件​

webapp第一步已经新建好了

1）web.xml 文件路径位置 webapp/WEB-INF/web.xml​

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1"
         metadata-complete="true">
    <display-name>Archetype Created Web Application</display-name>
    <!--welcome pages-->
    <welcome-file-list>
        <welcome-file>index.jsp</welcome-file>
    </welcome-file-list>

    <!--配置springmvc DispatcherServlet-->
    <servlet>
        <servlet-name>mvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <!--配置dispatcher.xml作为mvc的配置文件-->
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>mvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <context-param>
        <param-name>webAppRootKey</param-name>
        <param-value>mvc.root</param-value>
    </context-param>
    <!--把applicationContext.xml加入到配置文件中-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
</web-app>

2）spring-mvc.xml文件 文件路径resources/spring-mvc.xml​

<?xml version="1.0" encoding="UTF-8"?>
<beans
       xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd">
</beans>

3）applicationContext.xml文件 文件路径resources/applicationContext.xml​

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:util="http://www.springframework.org/schema/util"
       xmlns:tx="http://www.springframework.org/schema/tx" xmlns:task="http://www.springframework.org/schema/task"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
           http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
           http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
           http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-3.0.xsd
           http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.0.xsd"
       >
    <!-- 配置数据源 -->
    <bean name="jmreportDataSource" class="com.alibaba.druid.pool.DruidDataSource" destroy-method="close" init-method="init">
        <property name="url" value="jdbc:mysql://localhost:3306/jimureport?characterEncoding=UTF-8&amp;useUnicode=true&amp;useSSL=false&amp;tinyInt1isBit=false&amp;allowPublicKeyRetrieval=true&amp;serverTimezone=Asia/Shanghai" />
        <property name="username" value="root" />
        <property name="password" value="root" />
        <property name="driverClassName" value="com.mysql.cj.jdbc.Driver" />
        <!-- 初始化连接大小 -->
        <property name="initialSize" value="0" />
        <!-- 连接池最大使用连接数量 -->
        <property name="maxActive" value="20" />
        <!-- 连接池最大空闲 -->
        <property name="maxIdle" value="20" />
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="0" />
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="60000" />
        <property name="validationQuery" value="SELECT 1" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />
        <property name="testWhileIdle" value="true" />

        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="60000" />
        <!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="25200000" />

        <!-- 打开removeAbandoned功能 -->
        <property name="removeAbandoned" value="true" />
        <!-- 1800秒，也就是30分钟 -->
        <property name="removeAbandonedTimeout" value="1800" />
        <!-- 关闭abanded连接时输出错误日志 -->
        <property name="logAbandoned" value="true" />

        <!-- 开启Druid的监控统计功能 -->
        <property name="filters" value="stat" />
    </bean>

    <!-- 数据源集合 -->
    <bean id="dataSource" class="org.jeecgframework.minidao.datasource.DynamicDataSource">
        <property name="targetDataSources">
            <map key-type="org.jeecgframework.minidao.datasource.DataSourceType">
                <entry key="dataSource_jeecg" value-ref="jmreportDataSource" />
            </map>
        </property>
        <property name="defaultTargetDataSource" ref="jmreportDataSource" />
    </bean>

    <!-- JDBC配置 -->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource">
            <ref bean="dataSource" />
        </property>
    </bean>
    <!-- JDBC 占位符配置 -->
    <bean id="namedParameterJdbcTemplate"
          class="org.springframework.jdbc.core.namedparam.NamedParameterJdbcTemplate">
        <constructor-arg ref="dataSource" />
    </bean>

    <!-- minidao拦截器 -->
    <bean name="minidaoInterceptor" class="org.jeecgframework.minidao.aspect.MinidaoInterceptor" />
    <!-- MiniDao扫描类 -->
    <bean class="org.jeecgframework.minidao.factory.MiniDaoBeanScannerConfigurer">
        <!-- 返回结果Map的关键字key大小写设置， 默认值origin 即和sql保持一致,lower小写(推荐),upper 大写 -->
        <property name="keyType" value="lower" />
        <!-- 格式化sql -->
        <property name="formatSql" value="false" />
        <!-- 输出sql -->
        <property name="showSql" value="true" />
        <!-- 数据库类型 mysql/postgresql/oracle/sqlserver -->
        <property name="dbType" value="mysql" />
        <!-- dao 扫描路径,配置符合spring方式 -->
        <property name="basePackage" value="org.jeecg.modules.jmreport.desreport.dao" />
        <!-- 使用的注解,默认是Minidao,推荐 Repository -->
        <property name="annotation" value="org.springframework.stereotype.Repository" />
        <!-- Minidao拦截器配置 -->
        <property name="emptyInterceptor" ref="minidaoInterceptor" />
    </bean>

    <!--上传文件编码设置-->
    <bean id="multipartResolver"
          class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 设置上传文件的编码 -->
        <property name="defaultEncoding" value="UTF-8"/>
    </bean>
    <bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="locations">
            <list>
                <value>classpath*:config/default-config.properties</value>
            </list>
        </property>
    </bean>

    <!--事务管理器类-->
    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--注解方式实现事务-->
    <tx:annotation-driven transaction-manager="txManager"/>
    <aop:aspectj-autoproxy />
    <!--自动扫描-->
    <context:component-scan base-package="org.jeecg.modules.jmreport" />
</beans>

4）default-config.properties 配置文件， 文件路径resources/config/default-config.properties​

常用参数配置详见 http://report.jeecg.com/2302149

#上传模式local|minio|alioss
jeecg.uploadType=local
#上传路径
jeecg.path.upload=/opt/jimureport
#自动保存
jeecg.jmreport.autoSave=true
# 单位毫秒 默认5*60*1000
jeecg.jmreport.interval=360000
# 预览分页自定义
jeecg.jmreport.pageSize=50,60,70,100
#alioss配置
jeecg.oss.endpoint=oss-cn-beijing.aliyuncs.com
jeecg.oss.accessKey=??
jeecg.oss.secretKey=??
jeecg.oss.bucketName=??
# minio配置
jeecg.minio.minio_url=http://minio.jeecg.com
jeecg.minio.minio_name=??
jeecg.minio.minio_pass=??
jeecg.minio.bucketName=??
#数据隔离
jeecg.jmreport.saas=false
#DB类型（mysql | postgresql | oracle | sqlserver| other）
minidao.db-type=mysql
#输出sql日志
logging.level.org.jeecg.modules.jmreport = debug
