WebSocket接口

WebSocket接口配置说明

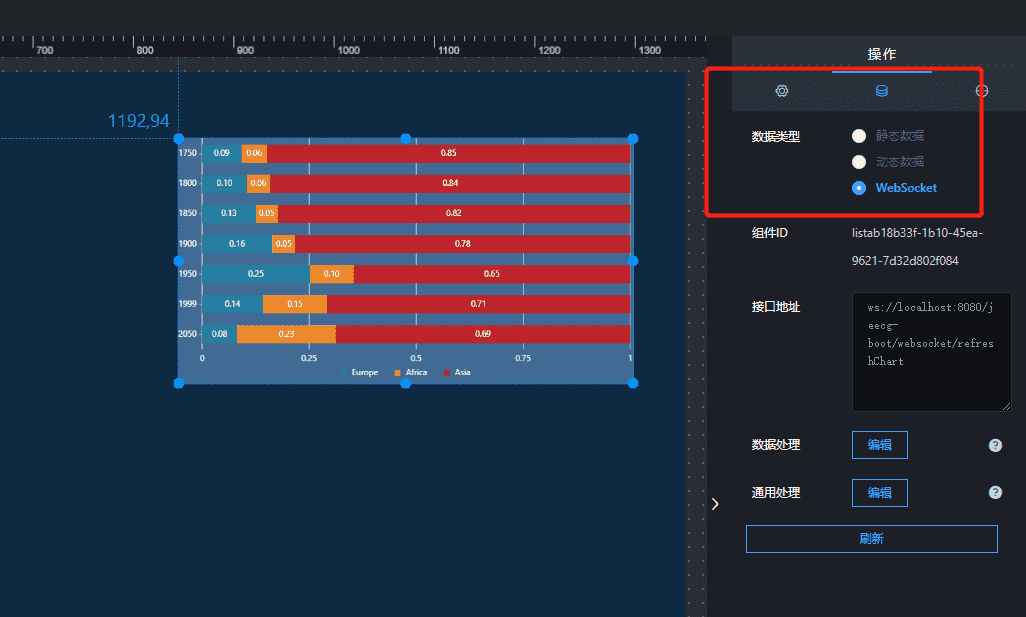

选中组件（本文以百分比条形图为例说明），在操作界面右侧，点击图标，并选择WebSocket，如下图

1、配置接口地址

在接口地址一栏填写我们制作的接口地址，并点击刷新应用接口，如下图

接口地址示例：ws://localhost:8080/jeecg-boot/websocket/refreshChart

https使用wss

2、编写WebSocket服务端

示例代码如下:

示例中使用了(redis订阅发布)机制解决消息集群问题

package org.jeecg.modules.jmreport.visual.websocket;

import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.CopyOnWriteArraySet;

import javax.annotation.Resource;
import javax.websocket.OnClose;
import javax.websocket.OnMessage;
import javax.websocket.OnOpen;
import javax.websocket.Session;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;

import org.jeecg.common.base.BaseMap;
import org.jeecg.common.constant.WebsocketConst;
import org.jeecg.common.modules.redis.client.JeecgRedisClient;
import org.springframework.stereotype.Component;

import com.alibaba.fastjson.JSONObject;

import lombok.extern.slf4j.Slf4j;

/**
 * 大屏websocket服务端
 * @author zyf
 */
@Component
@Slf4j
@ServerEndpoint("/websocket/refreshChart/{chartId}")
public class BigScreenWebSocket {
    /**
     * 链接会话
     */
    private Session session;
    /**
     * 图表ID
     */
    private String chartId;
    /**
     * redis队列名称
     */
    private static final String REDIS_TOPIC_NAME = "bigScreenSocketHandler";

    @Resource
    private JeecgRedisClient jeecgRedisClient;

    /**
     * 缓存 webSocket连接到单机服务class中（整体方案支持集群）
     */
    private static CopyOnWriteArraySet<BigScreenWebSocket> webSockets = new CopyOnWriteArraySet<>();
    private static Map<String, Session> sessionPool = new HashMap<String, Session>();


    @OnOpen
    public void onOpen(Session session, @PathParam(value = "chartId") String chartId) {
        try {
            this.session = session;
            this.chartId = chartId;
            webSockets.add(this);
            sessionPool.put(chartId, session);
            log.info("【websocket消息】有新的连接，总数为:" + webSockets.size());
        } catch (Exception e) {
        }
    }

    @OnClose
    public void onClose() {
        try {
            webSockets.remove(this);
            sessionPool.remove(this.chartId);
            log.info("【websocket消息】连接断开，总数为:" + webSockets.size());
        } catch (Exception e) {
        }
    }


    /**
     * 服务端推送消息
     *
     * @param chartId
     * @param message
     */
    public void pushMessage(String chartId, String message) {
        Session session = sessionPool.get(chartId);
        if (session != null && session.isOpen()) {
            try {
                log.info("【websocket消息】 单点消息:" + message);
                session.getAsyncRemote().sendText(message);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

    /**
     * 服务器端推送消息
     */
    public void pushMessage(String message) {
        try {
            webSockets.forEach(ws -> ws.session.getAsyncRemote().sendText(message));
        } catch (Exception e) {
            e.printStackTrace();
        }
    }


    @OnMessage
    public void onMessage(String message) {
        //todo 现在有个定时任务刷，应该去掉
        log.debug("【websocket消息】收到客户端消息:" + message);
        JSONObject obj = new JSONObject();
        //业务类型
        obj.put(WebsocketConst.MSG_CMD, WebsocketConst.CMD_CHECK);
        //消息内容
        obj.put(WebsocketConst.MSG_TXT, "心跳响应");
        for (BigScreenWebSocket webSocket : webSockets) {
            webSocket.pushMessage(message);
        }
    }

    /**
     * 后台发送消息到redis
     *
     * @param message
     */
    public void sendMessage(String message) {
        log.info("【websocket消息】广播消息:" + message);
        BaseMap baseMap = new BaseMap();
        baseMap.put("chartId", "");
        baseMap.put("message", message);
        jeecgRedisClient.sendMessage(REDIS_TOPIC_NAME, baseMap);
    }

    /**
     * 此为单点消息
     *
     * @param chartId
     * @param message
     */
    public void sendMessage(String chartId, String message) {
        BaseMap baseMap = new BaseMap();
        baseMap.put("chartId", chartId);
        baseMap.put("message", message);
        jeecgRedisClient.sendMessage(REDIS_TOPIC_NAME, baseMap);
    }

    /**
     * 此为单点消息(多组件)
     *
     * @param chartIds
     * @param message
     */
    public void sendMessage(String[] chartIds, String message) {
        for (String chartId : chartIds) {
            sendMessage(chartId, message);
        }
    }

}

3、编写消息推送测试方法

/**
 * 测试大屏websocket接口
 */
@RestController
@Api(tags="大屏WebSocket测试")
@RequestMapping("/bigscreen/websocket")
public class WebSocketController {

    @Autowired
    private BigScreenWebSocket webSocket;

    @PostMapping("/sendData")
   @ApiOperation(value="测试大屏组件更新", notes="测试大屏组件更新")
    public Result<String> sendData() {
       Result<String> result = new Result<String>();
       //需要推送数据的组件ID
       String chartId="listab18b33f-1b10-45ea-9621-7d32d802f084";
       String message = "[{\"country\":\"Asia\",\"year\":\"1750\",\"value\":1502},{\"country\":\"Asia\",\"year\":\"1800\",\"value\":1635},{\"country\":\"Asia\",\"year\":\"1850\",\"value\":1809},{\"country\":\"Asia\",\"year\":\"1900\",\"value\":1947},{\"country\":\"Asia\",\"year\":\"1950\",\"value\":1402},{\"country\":\"Asia\",\"year\":\"1999\",\"value\":3634},{\"country\":\"Asia\",\"year\":\"2050\",\"value\":5268},{\"country\":\"Africa\",\"year\":\"1750\",\"value\":106},{\"country\":\"Africa\",\"year\":\"1800\",\"value\":107},{\"country\":\"Africa\",\"year\":\"1850\",\"value\":111},{\"country\":\"Africa\",\"year\":\"1900\",\"value\":133},{\"country\":\"Africa\",\"year\":\"1950\",\"value\":221},{\"country\":\"Africa\",\"year\":\"1999\",\"value\":767},{\"country\":\"Africa\",\"year\":\"2050\",\"value\":1766},{\"country\":\"Europe\",\"year\":\"1750\",\"value\":163},{\"country\":\"Europe\",\"year\":\"1800\",\"value\":203},{\"country\":\"Europe\",\"year\":\"1850\",\"value\":276},{\"country\":\"Europe\",\"year\":\"1900\",\"value\":408},{\"country\":\"Europe\",\"year\":\"1950\",\"value\":547},{\"country\":\"Europe\",\"year\":\"1999\",\"value\":729},{\"country\":\"Europe\",\"year\":\"2050\",\"value\":628}]";
       JSONObject obj = new JSONObject();
       obj.put("chartId",chartId);
      obj.put("result", message);
        webSocket.sendMessage(chartId, obj.toJSONString());
        result.setResult("单发");
        return result;
    }

}

4、返回JSON数据格式

[{
	"value": 1048,
	"name": "波导33333"
},
{
	"value": 735,
	"name": "oppo"
},
{
	"value": 580,
	"name": "华为"
},
{
	"value": 484,
	"name": "小米"
},
{
	"value": 300,
	"name": "魅族"
}]
